Vacuum-Forming Tool Design Checklist: Before You Commit to a Metal Mold

A faster way to decide what the tool should be

For a new tray, shell, insert, enclosure, cover, or display form, the first question is not “aluminum or 3D print?” It is: what must this tool survive, and how likely is the geometry to change?

At TECHNAST, we use this checklist before choosing a rapid PA-CF tool, a conventional tool, or a staged path from one to the other.

1. Start with the formed part

• What sheet material and thickness will be formed?
• What is the forming-temperature window?
• What are the maximum part size and draw depth?
• Is the surface cosmetic, structural, protective, or disposable?
• Are there pockets, sharp corners, fine detail, logos, or ribs that need reliable definition?

2. Check release geometry before choosing material

A tool needs usable draft and a clean release path. Deep pockets and sharp transitions also need a deliberate venting strategy. Undercuts are not a filament problem; they are a geometry and release problem that may require a split tool, redesign, or a different forming approach.

3. Design the vacuum route with the part

Venting should be designed into the tool, not treated as a last-minute drilling operation. Review low points in cavities and grooves, air paths from the forming surface to the vacuum interface, flow under the tool base, witness-mark sensitivity, and release-air behavior after forming.

4. Decide how much iteration the program needs

Rapid additive tooling is strongest when the part geometry is still moving, when internal airflow is complex, or when the production quantity does not justify freezing a costly metal decision. Conventional metal tooling may be the better route when long-run economics, surface durability, large thermal loads, highly demanding cosmetics, or qualification requirements dominate.

5. Set acceptance criteria before the first cycle

Agree on target quantity, allowable geometry drift, surface requirements, airflow consistency, release behavior, and delivery date. Then inspect the first formed parts against those criteria—not just whether the tool survived the first pull.

The documented TECHNAST example

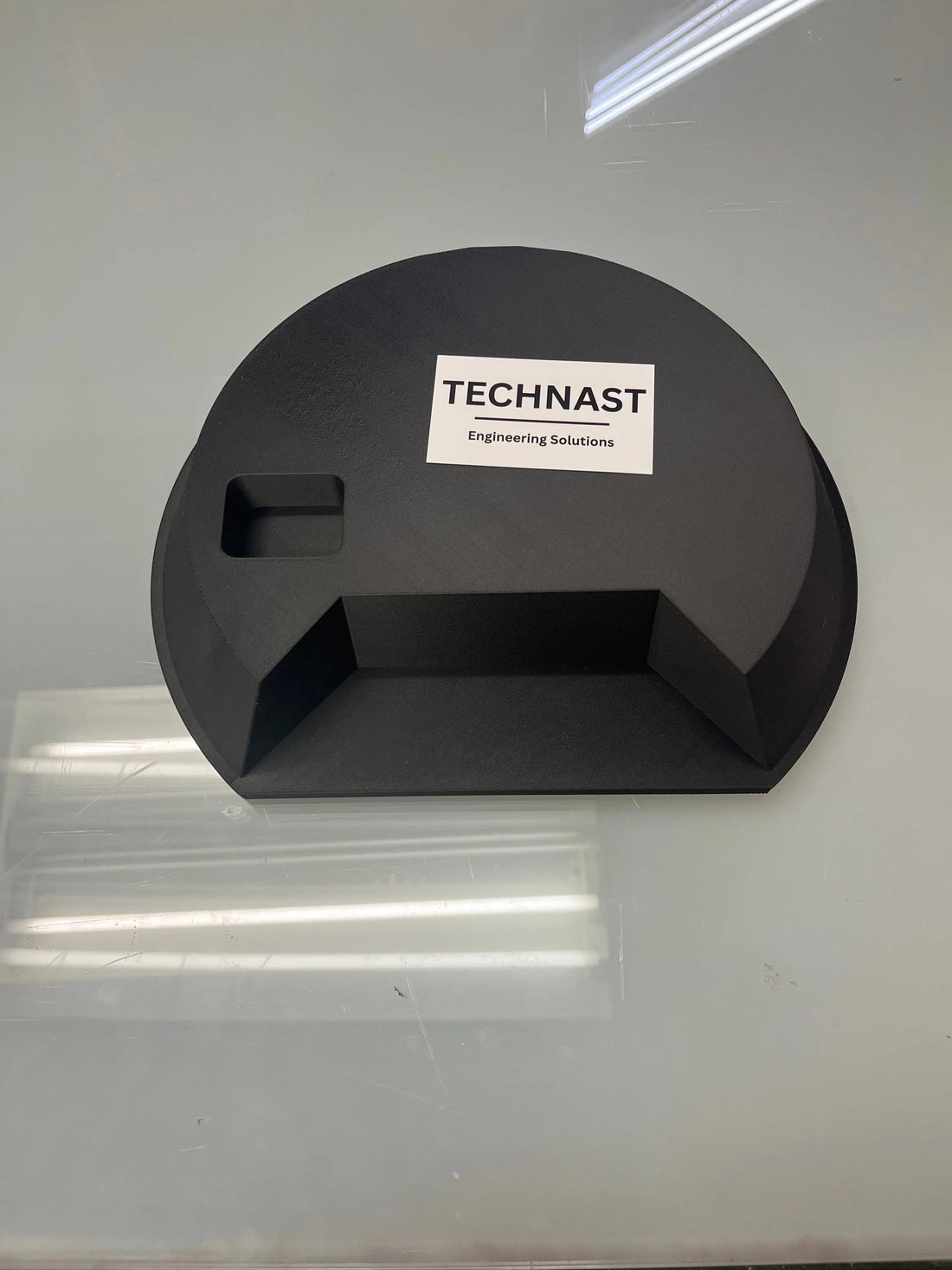

TECHNAST built a monolithic carbon-fibre-reinforced nylon vacuum-forming mold with internal airflow channels. The published case records more than 2,000 cycles without reported structural degradation, airflow failure, or geometry drift.

Read the full carbon-fibre vacuum-forming mold case study.

Send us the five inputs that make a fast answer possible

1. Part CAD or photos/dimensions.
2. Sheet material, thickness, and forming temperature.
3. Machine/table and vacuum-connection details.
4. Expected quantity and revision likelihood.
5. Required surface, tolerance, and delivery criteria.

TECHNAST can assess the tooling route before you commit to a costly mold remake.
