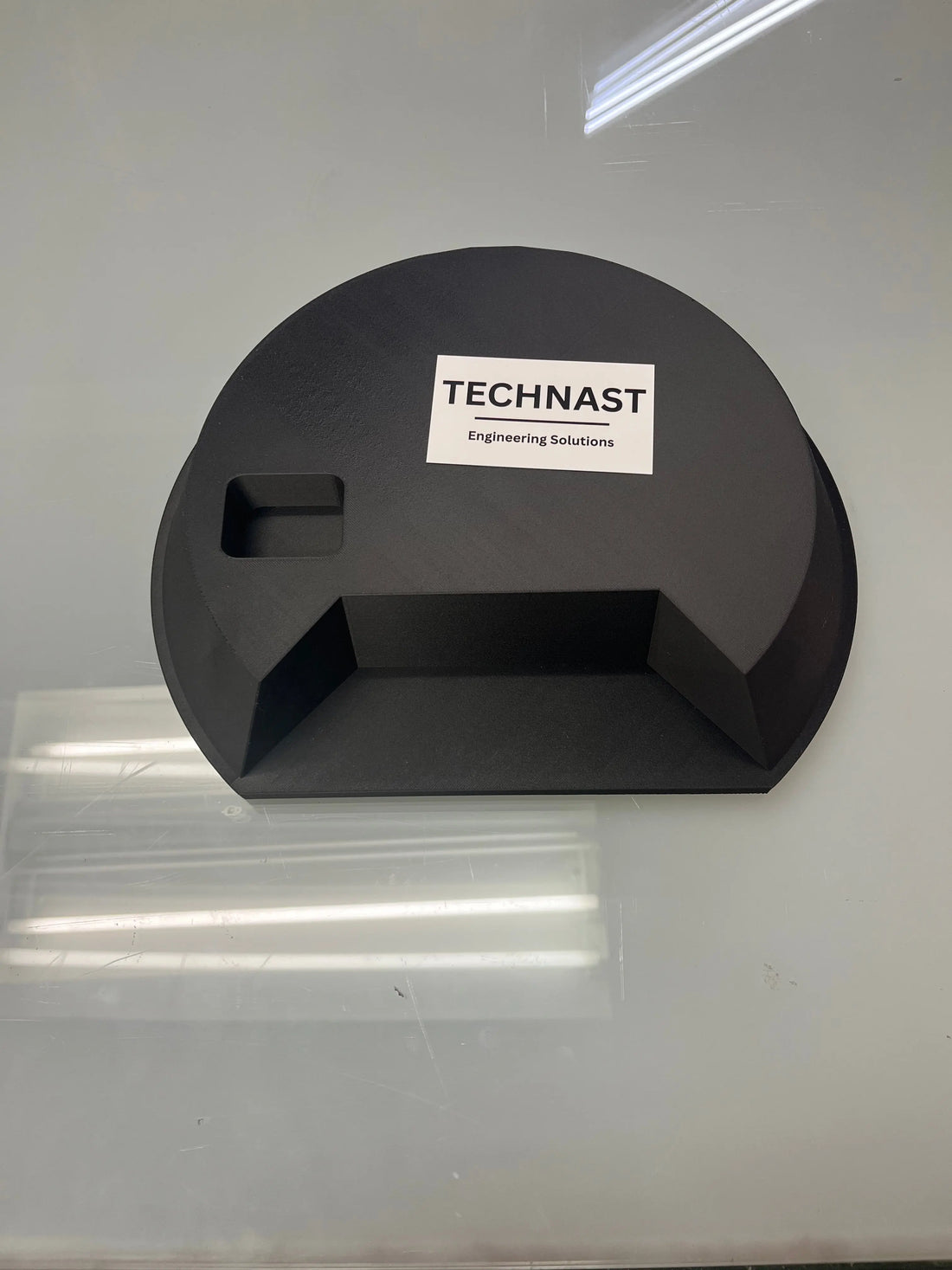

Carbon Fiber Vacuum Forming Mold — Rapid, Iterative, Production-Ready
Problem Structure
Traditional vacuum forming molds:
- CNC-machined aluminum or steel
- High upfront cost
- Long lead times
- Zero iteration tolerance (design error = full remake)
- Secondary drilling required for airflow
Constraint: fixed geometry + expensive correction loop.
Intervention: Additive Carbon Fiber Nylon Mold
We replaced subtractive metal tooling with carbon fiber reinforced nylon (PA-CF) via additive manufacturing.
System advantages:
- Direct digital → physical translation
- Zero tooling setup cost
- Iteration loop compressed to hours, not weeks
- Geometry complexity = free
Engineering Execution
1. Internal Airflow Architecture
- Integrated vacuum channels designed directly into the CAD
- Distributed suction network instead of surface drilling
- Uniform pressure distribution across forming surface
Result: no post-processing, no manual airflow tuning.
2. Material Selection: PA-CF
- High stiffness-to-weight ratio
- Thermal stability under repeated heating cycles
- Low deformation under vacuum load
- Surface quality suitable for forming
Behavior under load:
- Sustains production conditions without creep
- Maintains dimensional stability across cycles
3. Manufacturing Strategy
- Printed as a monolithic structure
- Orientation optimized for load + thermal direction
- Reinforced critical zones (edges, corners, vacuum interface regions)
- Surface tuned for release + finish balance
Performance Metrics
- >2000 forming cycles completed
- No structural degradation
- No airflow failure
- No geometry drift
This moves additive tooling from “prototype” → production-capable asset.
Economic Delta
| Parameter | Metal Mold | Carbon Fiber Nylon Mold |
|---|---|---|
| Initial Cost | High | Low |
| Lead Time | Weeks | Hours–Days |
| Iteration Cost | Full remake | Minor revision |
| Complexity | Limited | Arbitrary |
| Airflow Integration | Secondary process | Native |
Conclusion: additive wins when iteration + complexity + speed dominate.
Strategic Implication
This is not just a cheaper mold.
This is a different manufacturing model:
- Design → test → deploy → iterate → scale
- Continuous improvement without capital reset
- Functional geometry (internal channels, gradients, topology optimization)
Metal locks you into a decision.
Additive keeps the system adaptive.
Use Cases
- Custom packaging molds
- Short-to-mid production runs
- Rapid product iteration environments
- Complex geometries requiring controlled airflow
- R&D pipelines transitioning to production
Closing Signal
This mold replaced metal, removed post-processing, integrated airflow, and survived production load.
That’s the shift:
Tooling is no longer static. It’s programmable.
