Simcenter Testlab’s Update Highlights the Value of Better Test Data

Engineering news and TECHNAST analysis · October 13, 2026

A test result is only as useful as the engineering decision it supports. Siemens’ latest Simcenter Testlab announcement brings attention to an often overlooked part of product development: preserving enough context to trust and reuse measurements.

What changed

In its September 28, 2026 announcement, Siemens described updated structural dynamics workflows, data annotation and automation, system noise, vibration and harshness prediction, and virtual shaker testing. The company reports efficiency improvements of up to 35% across structural dynamics workflows and up to 60% faster system NVH prediction. Those figures are Siemens’ claims for the described workflows, not general reductions in product-development time or results established by TECHNAST.

TECHNAST’s view: design the test with the prototype

We see the useful lesson as broader than one software release. A prototype should arrive with a question it can answer. Does a latch retain after repeated use? Does a bracket move too far under the intended load? Can an operator install a component without damaging an adjacent feature? Each question calls for a different setup and a different record.

Without that question, a test can produce an attractive chart that never changes a design decision. Worse, a later team may compare two charts produced with different constraints and attribute the difference to the part.

The minimum record worth keeping

• The part identifier and design revision, including material and relevant production conditions.
• The fixture revision, contact points and installation method.
• Sensor location, orientation, settings and calibration reference where relevant.
• The applied condition, acceptance criterion and observed result.
• Any deviation that could affect comparison with another run.

Consider a hypothetical enclosure vibration test. If one run uses a rigid base and another uses a compliant support, the mounting change belongs in the record. The first engineering task is to separate the setup change from the design change before drawing a conclusion about improvement.

Make the next iteration easier to judge

Our recommendation is to create a short test plan before fabricating the next prototype. Identify the decision, the measurement and the threshold that would justify proceeding. Preserve the raw results alongside the setup record so that later analysis can be checked.

Custom test fixtures can make that comparison more repeatable by controlling how the part is held and loaded. Their design is part of the experiment. Better software can help manage the evidence, but useful evidence starts with a physically meaningful test.

Source and editorial note

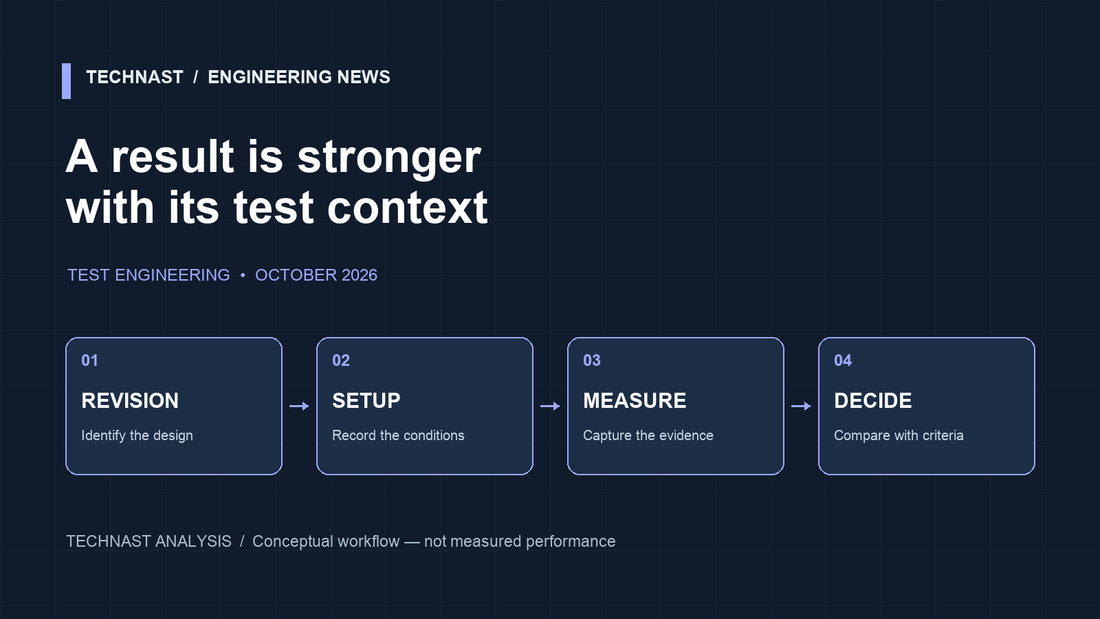

Siemens Simcenter Testlab announcement — September 28, 2026. Reporting above is attributed to the source; the recommendations and hypothetical examples are TECHNAST editorial analysis. Cover graphic: original TECHNAST conceptual diagram, not a photograph or a test result.
