From a Physical Toolbox to a Repeatable Organizer Insert: The Engineering Workflow

A custom toolbox organizer is not merely a collection of pockets. If it must fit an existing case, hold specific tools, and be reproduced later, it becomes a geometry and workflow problem.

The useful customer decision is simple: should the organizer be designed from measurements, from a 3D scan, or from a combination of both? The answer depends on the toolbox geometry, the tools being retained, the consequences of poor fit, and whether the first insert is a one-off or the start of a repeatable part.

The project context behind this workflow

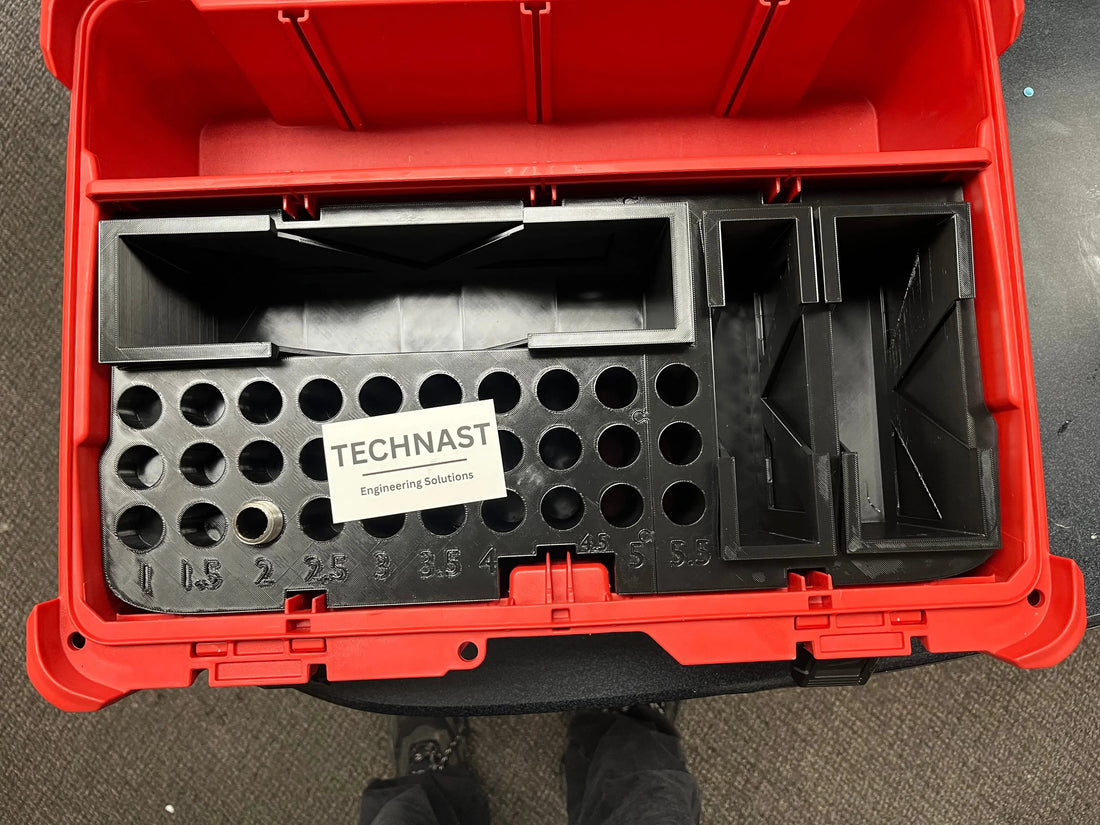

TECHNAST has a recorded project lead involving a plumbing-company toolbox organizer. The retained record indicates that scanning and CAD work were used to develop a precision-fit insert with potential for scalable production.

The project record does not yet confirm the material, dimensions, quantity, production method, customer permissions, or measured outcome. This article therefore focuses on the engineering decisions behind that type of job rather than claiming specific project results.

Start with the real constraint, not the organizer shape

Before modelling compartments, establish what the insert must do. The visible tool layout is only one part of the brief.

• Case constraint: Does the insert need to match curved walls, ribs, hinges, latches, lids, handle clearances, or removable trays?
• Tool constraint: Which tools require retention, quick access, protection, orientation control, or clearance for removal?
• Use constraint: Will the organizer be used in a vehicle, carried between jobs, exposed to dirt or moisture, or repeatedly opened and closed?
• Production constraint: Is the requirement one fitted insert, a small repeatable batch, or a design that may later be manufactured by another process?

A clean photograph of a toolbox is useful for discussion, but it is not enough to establish fit. The part must be based on geometry that can be inspected, modelled, and checked against the physical object.

When 3D scanning is the right starting point

3D scanning is most useful when the existing object has geometry that is awkward to capture reliably with calipers and a tape measure. Typical examples include molded plastic tool cases with tapered walls, internal ribs, irregular corners, textured surfaces, or multiple interacting features.

A scan can provide a geometric reference for the case interior. It is not automatically a finished CAD model, and it should not be treated as one. Scan data usually needs review, alignment, cleanup, and interpretation before it becomes a design reference.

What scanning can help capture

• The overall interior envelope of a case or drawer.
• Curved, tapered, or molded surfaces that complicate manual measurement.
• Ribs, bosses, divider locations, and other features that affect seating.
• Relative relationships between features that need to remain clear.

What still requires engineering judgement

• Whether a surface is functionally important or just visual texture.
• How much clearance is needed for insertion, removal, and manufacturing variation.
• Which contact points should locate the insert and which should be relieved.
• Whether the scan captures every hidden or occluded feature well enough for the intended fit.

For simpler rectangular cases, direct measurement and a small number of physical checks may be more efficient than scanning. The right process is the one that reduces fit risk without adding ceremony.

Turn scan data or measurements into a useful CAD model

The CAD model should represent the functional intent, not blindly reproduce every surface in the source geometry. A repeatable organizer design typically separates the problem into a case interface and a tool interface.

1. Create the case envelope. Establish the surfaces, clearances, and locating features that define how the insert sits inside the toolbox.
2. Model the tool zones. Define each compartment around how the tool is stored, grasped, removed, and returned.
3. Protect critical clearances. Account for lid closure, hinges, latches, handles, existing trays, and neighbouring tools.
4. Design for use. Add finger access, sensible tool orientation, drainage or debris relief where appropriate, and edges that do not make daily handling worse.
5. Prepare for revision. Keep the model structured so a tool, compartment, or case variation can be updated without rebuilding the entire layout.

A good organizer does not need to immobilize every object. It needs to retain the tools appropriately for the actual use case while allowing the user to remove them without fighting the part.

Fit is a system, not a single dimension

A fitted insert can fail even when its overall length and width appear correct. The relevant question is whether the complete system works: case, insert, tools, lid, latch, and user interaction.

Fit review should consider:

• Whether the insert seats without excessive force.
• Whether it remains located during normal movement.
• Whether the lid closes and latches with the intended tool set installed.
• Whether tools can be removed without damaging the insert or neighbouring tools.
• Whether small differences between nominally similar cases could affect interchangeability.

Where the consequences of a poor fit are meaningful, a physical prototype is the sensible checkpoint. It exposes interference, awkward access, and real handling problems that a screen model can hide very effectively.

Design the first insert so it can be repeated later

“Scalable” does not simply mean making more copies of the same file. It means preserving enough design intent and inspection logic that the insert can be reproduced consistently when the next request arrives.

For a repeatable organizer program, the project file should identify:

• The specific toolbox or case version used as the reference.
• The tool list and any approved substitutions.
• The surfaces or features used to locate the insert.
• The intended clearance strategy and areas that must remain clear.
• The revision history after physical fit checks.
• The manufacturing method and material once those decisions are confirmed.

This record matters because a toolbox product line can change without announcing itself. A new internal rib, latch detail, or lid shape can turn a previously valid insert into a near miss.

Information to provide before requesting a custom organizer

A strong starting package reduces back-and-forth and makes the first technical review more useful.

• Photos of the open and closed toolbox, including its label or part number if available.
• Photos or a list of the tools that must be stored.
• Any non-negotiable requirements, such as lid closure, tool orientation, removable sections, or access while wearing gloves.
• The number of inserts needed now and whether repeat orders are likely.
• A note about whether the case can be brought in or made available for scanning and measurement.

If the case is unique, worn, modified, or supplied by a customer, that should be identified early. The physical reference object is part of the engineering input.

Where TECHNAST can help

For projects that begin with an existing physical object, the practical path may combine non-contact scanning, scan-informed CAD, functional prototyping, and a documented design suitable for later reproduction. The scope should be reviewed against the actual case, tool set, fit requirements, and intended production quantity before any material or performance claim is made.

Related project context: custom toolbox organizer project reference.
