Designing Repair Fixtures Around Tool Access and Removal

A fixture can hold a part beautifully and still fail the job. The driver cannot reach the fastener. The inspection probe is blocked. The assembly has to come out and be repositioned by hand because the tool only supports one working face.

For repair and service shops, the useful design change may be an opening, a rotation or a complementary cradle—not another complete fixture. Start with the work sequence: what must be supported, which face needs attention, how the tool approaches, and how the device comes out when the step is finished.

Access belongs in the fixture requirements

A fixture is often judged by whether it locates and supports the part. Those are essential, but the technician also needs room to perform the operation. The National Institute of Standards and Technology’s overview of assembly performance metrics lists tool usage, fixturing, visual occlusion and physical obstruction among factors identified by design-for-assembly studies. NIST discusses assembly-task evaluation, including robotics; it does not report repair-shop time savings. The useful reminder is narrower: the obstruction created by a support can be part of the work problem.

Map access before detailing the fixture. Draw or photograph the tool approach, the operator’s line of sight, the movement needed to change orientation, and the removal path. Include cables, hoses, fragile surfaces and nearby features that must stay clear. A cradle that passes a static fit check may still obstruct the actual repair step.

Four checks before redesigning the tool

1. Define the operation in order. Record how the equipment is loaded, located, opened or serviced, repositioned and removed. Note where the present setup forces a workaround.
2. Mark what must touch and what must stay open. Separate locating surfaces from support surfaces. Identify sensitive areas and the clearance needed for hands, drivers, probes or inspection cameras.
3. Preserve useful existing tooling. If a solid base already locates the job well, a fitted insert or counterpart may add a missing orientation without replacing the complete assembly. Check the mounting interface, retention and load path.
4. Set a physical acceptance check. Confirm the equipment seats consistently, stays supported during the real task, exposes the required working face and can be removed without force or damage. Repeat the operation enough to reveal awkward handling; set cycle and load requirements from the actual use.

A real example: adding the other side

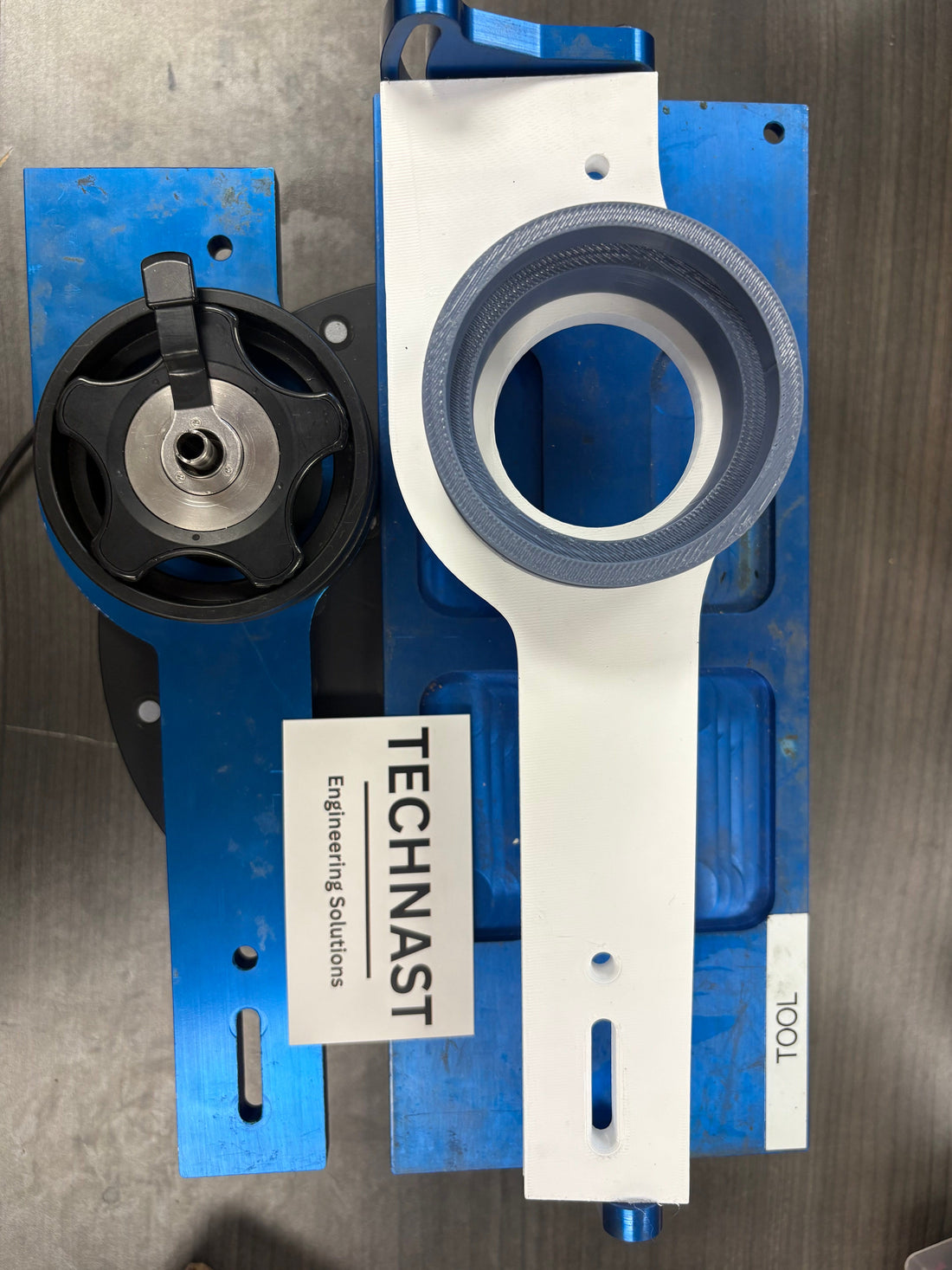

In TECHNAST’s endoscope repair-fixture project, an existing machined-metal tool supported one orientation. The repair shop needed access to the opposite side of the instrument. TECHNAST scanned the physical control body and developed a complementary printed fixture that mounted to the existing base. The complete body could then be rotated 180 degrees and secured with the other face presented for service.

The practical idea was to add the missing support geometry while retaining the useful original fixture. The public case documents that configuration and fit; it does not quantify time savings or establish a universal material choice. Each device, tool path and service condition needs its own review.

Where this approach may be useful

• A service shop that needs to expose both sides of a control body or housing without building a second full workholding station.
• A repair bench where probes, drivers or inspection tools are blocked by the current nest or clamp.
• A low-volume operation with a sound base but a new product variant that needs different support or clearance.
• A custom cradle for handling an irregular device through inspection, disassembly and reassembly.

These are candidate applications, not guaranteed outcomes. A simple adjustable support may be enough. For high loads, sustained heat, aggressive chemicals, tight tolerance requirements or high cycle counts, a printed part may be the wrong choice; a machined metal feature or hybrid tool may be more appropriate. The route depends on the part, forces, environment, quantity and required verification.

What to send for a useful assessment

TECHNAST’s scanning and reverse-engineering workflow can start from inspection, useful scan data and supplementary measurements, then develop functional CAD and verify a prototype when required. To assess a repair fixture, send photographs or CAD of the equipment and existing tool, approximate dimensions, the work sequence, required tool paths, mounting interfaces, loads and environmental conditions. Include quantity, acceptance criteria and deadline, and say whether the physical parts can be inspected.

Ask TECHNAST to assess a repair-fixture access problem. Mention BO-003 and identify the face or operation the current tool cannot reach. We can review whether a complementary printed fixture, a hybrid design or another route fits the job.
